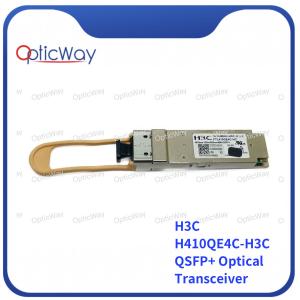

Product Description:H3C H410QE4C-H3C FTL410QE4C-HC 40Gbps 100m 850nm MM QSFP+ Optical Transceiver
QSFP+ transceiver provides 40GBase-SR4 throughput up to 150m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO connector. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Finisar®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Features:
- Four-channel full-duplex transceiver module
- Hot-pluggable QSFP+ form factor
- Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
- Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
- Unretimed XLPPI electrical interface
- Maximum power dissipation < 1W
- Reliable VCSEL array technology
- Built-in digital diagnostic functions, including optical power monitoring
- Commercial temperature range 0°C to 70°C
- Single 1×12 MPO receptacle
- RoHS compliant
Applications:
- Breakout to 4 x 10GBASE-SR Ethernet
- Proprietary interconnections
- Specifications
- Distance: 150 m
- Data Rate (max): 41.2 Gb/s
- Protocol: 10x Fibre Channel Compatible 40G Ethernet Compliant IB QDR Compatible
- Low End Case Temperature (°C): 0
- High End Case Temperature (°C): 70
- Diagnostics: N/A
- Transmitter: 4x VCSEL
- Receiver: PIN
- Voltage Supply: 3.3
- Connector: MPO
- Wavelength: 850nm Band
